Commercial InnoWinno Winnower

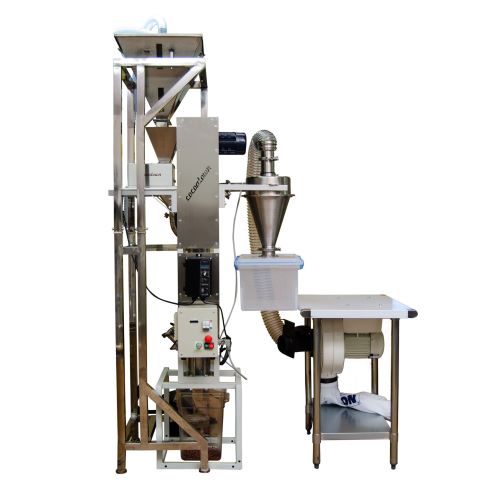

CocoaT InnoWinno Winnower (Commercial) is a revolutionary equipment for Artisan chocolate makers. This equipment is based on several years of research and the technology. It effectively and cleanly separates nibs from husks in a single pass through. CocoaT winnower complete system comes with CocoaT Power cracker, bean feeding mechanism and hopper extension. With capacity of approximately 100Kg (220 lbs) per hour.

CocoaT Power Cracker cracks the beans into nibs and also pulls the skin off from the nibs for efficient separation in the winnower. The bean transfer mechanism transfers the beans on the floor to the hopper extension. All in a compact foot print of less than 12 sq. ft (1.1 sq. m). The closed collection system for the husk ensures there is no dust, making it suitable for any manufacturing environment.The complete system costs US$15000 + S&H.

All our commercial processing units are configured for 220V power input. If you have any special power input requirements, please contact us at the time of ordering.

Read more:

InnoWinno Winnower is a high efficiency, high throughput compact system that separates husk from the cracked cocoa beans to yield clean nibs. This system is cheaper, compact, dust free and more efficient than the models available in the market.

Simply add the cocoa beans to the built in CocoaT power Cracker hopper, the cracked beans are passed through the winnower column and cocoa nibs fall into collection box while husk is collected in a separate container. High yield of nibs with minimum husk ensures high quality nibs, the precursor for the best chocolate. There is negligible amount of nibs in the husk and vice versa with a single pass.

Most of the winnowers in the market are huge machines but still require multiple passes of cracked beans to get acceptable results. Cracking the roasted beans properly is critical to efficient winnowing and most of the crackers in the market are not optimized for efficient winnowing. Craft chocolate makers felt that significant amount of fine tuning is required for each batch of beans to get decent separation. They were losing lot of nib powder with husk and getting lot of husk with the nibs in single pass. So we came up with a solution with patented cracker and winnower system that is designed for cacao beans to give best results.

Specifications:

Weight – ~100 Kgs (220 lbs)

Footprint – 5’ x 4’

Material – High quality Stainless steel in all food contact areas

Metal Gears

Patented design for cracker and winnower units

It effectively cleans and separates nibs from the husk in a single pass.The InnoWinno winnower is a complete system that comes with CocoaT Power cracker, bean feeding mechanism to transfer the beans from the bean sack on the floor to the hopper extension.This unit has a capacity to winnow up to 100kg (220 lbs) per hour for roasted beans. Results may vary for raw beans. The whole system is very compact and takes less than 16 sq. ft. It is very quiet compared to similar systems from other manufacturers.
